Model Number : HTB-3100
Transmission distance : 20KM
Certification : NONE
Fiber Type : Single Mode
THIS link for HTB-3100 AB 100M Fiber Media Converter
Overview

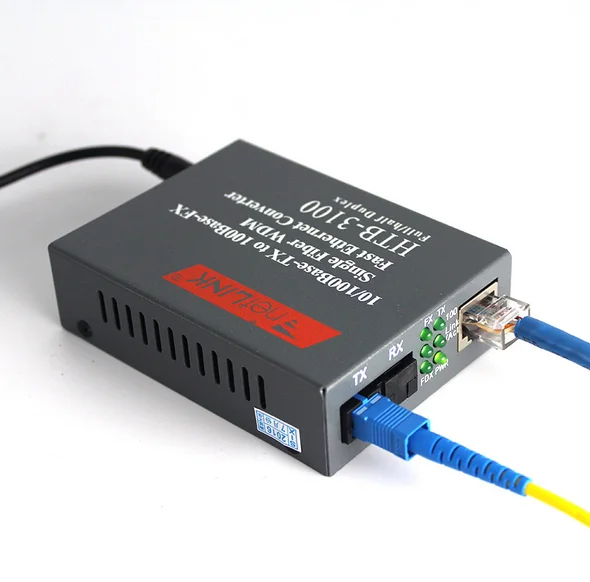

The 100M Ethernet Media Converters with external power supply are designed to transmit and receive 10/100Mbps data over optical fiber. The electrical interface will Auto-Negotiate to a 10Mbps or 100Mbps Ethernet rate without any adjustments. The optical interface operates at a 100Mbps Ethernet rate. Both are environmentally hardened to operate in extreme temperatures. LED indicators are provided for confirming equipment operating status.
Default with EU power adapter.UK,US,BR,AU standards can be provided as request.
Bulk order please contact with us , we are factory have the best price for you
ITEM | Technical Parameters |
Product Number | 100M Fiber Media Converter |
FiberType | Single-mode |
Module Type | RJ45 |
Interface Type | SC |
Transmission Distance | 20KM |
Transmission Wavelength | 1310nm 1550nm |
Input Current | 1A |
Operating Voltage | 5V |
Weight | 0.3kg |
Size | 250 x 150 x 100 (mm) |
